ORICO 88 Series Multi-Bay USB3.2 2.5'' SATA SSD Enclosure with RAID

Product image 1
1 / 9

ORICO 88 Series Multi-Bay USB3.2 2.5'' SATA SSD Enclosure with RAID

ORICO 88 Series Multi-Bay USB3.2 2.5'' NVMe/SATA SSD Enclosure with RAID ORICO

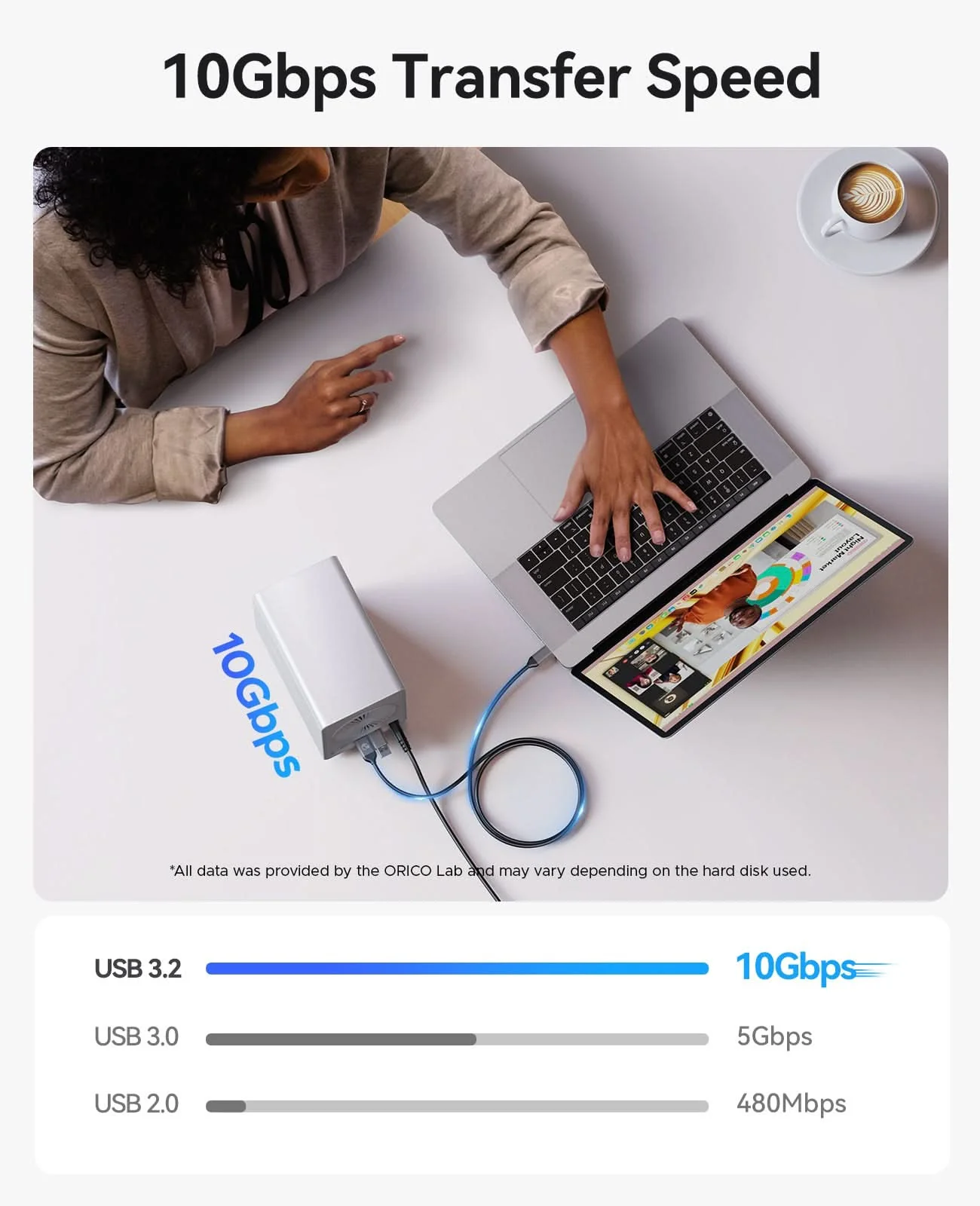

“5-bay USB 3.2 DAS enclosure connected to laptop showing 10Gbps data transfer speed for SSD and HDD storage expansion.”

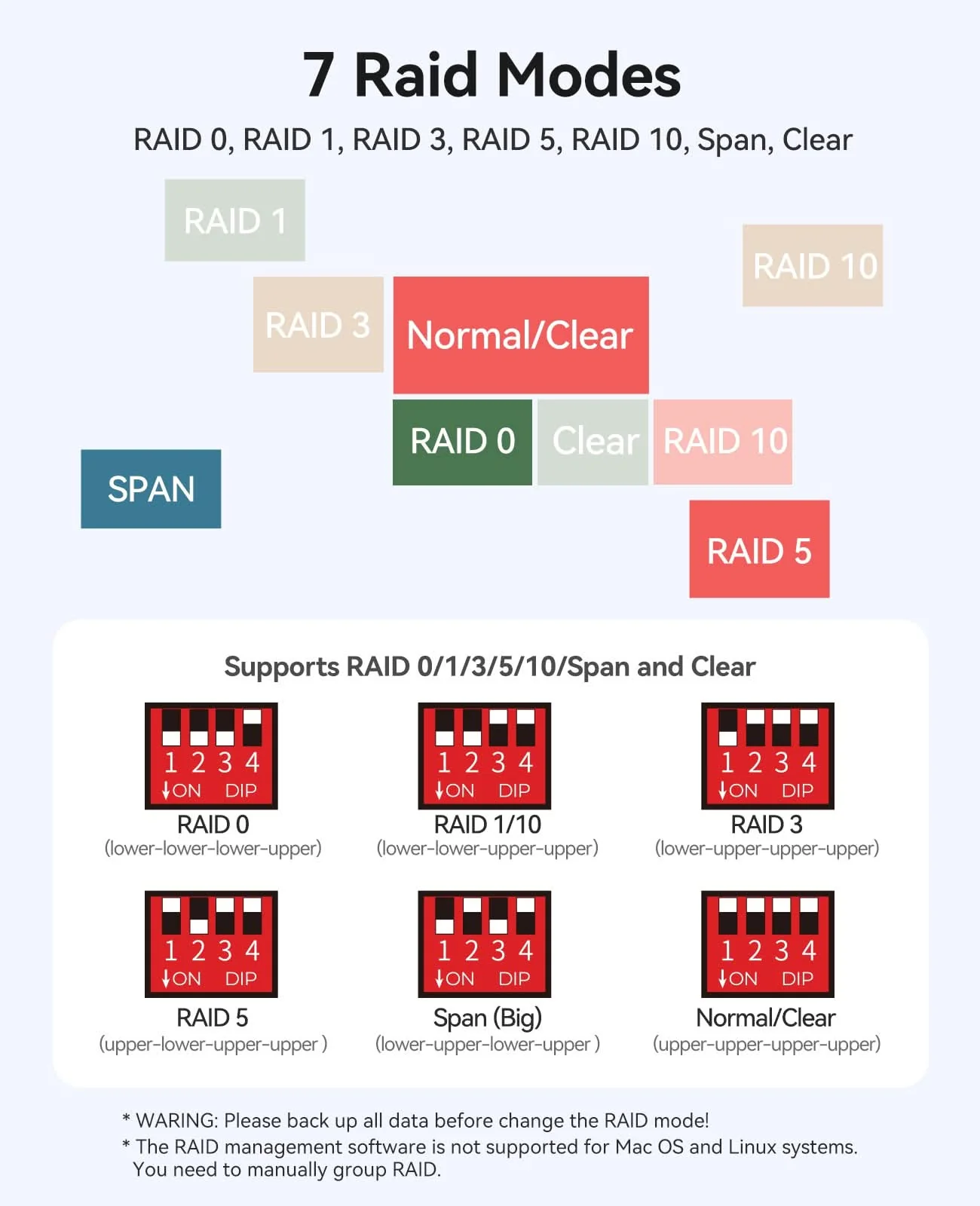

RAID mode comparison table showing RAID 0, RAID 1, RAID 3 and RAID 5 configuration, disk requirements and storage capacity.”
RAID configuration chart displaying RAID 10, Span JBOD and Normal mode with minimum disks and available storage capacity.”

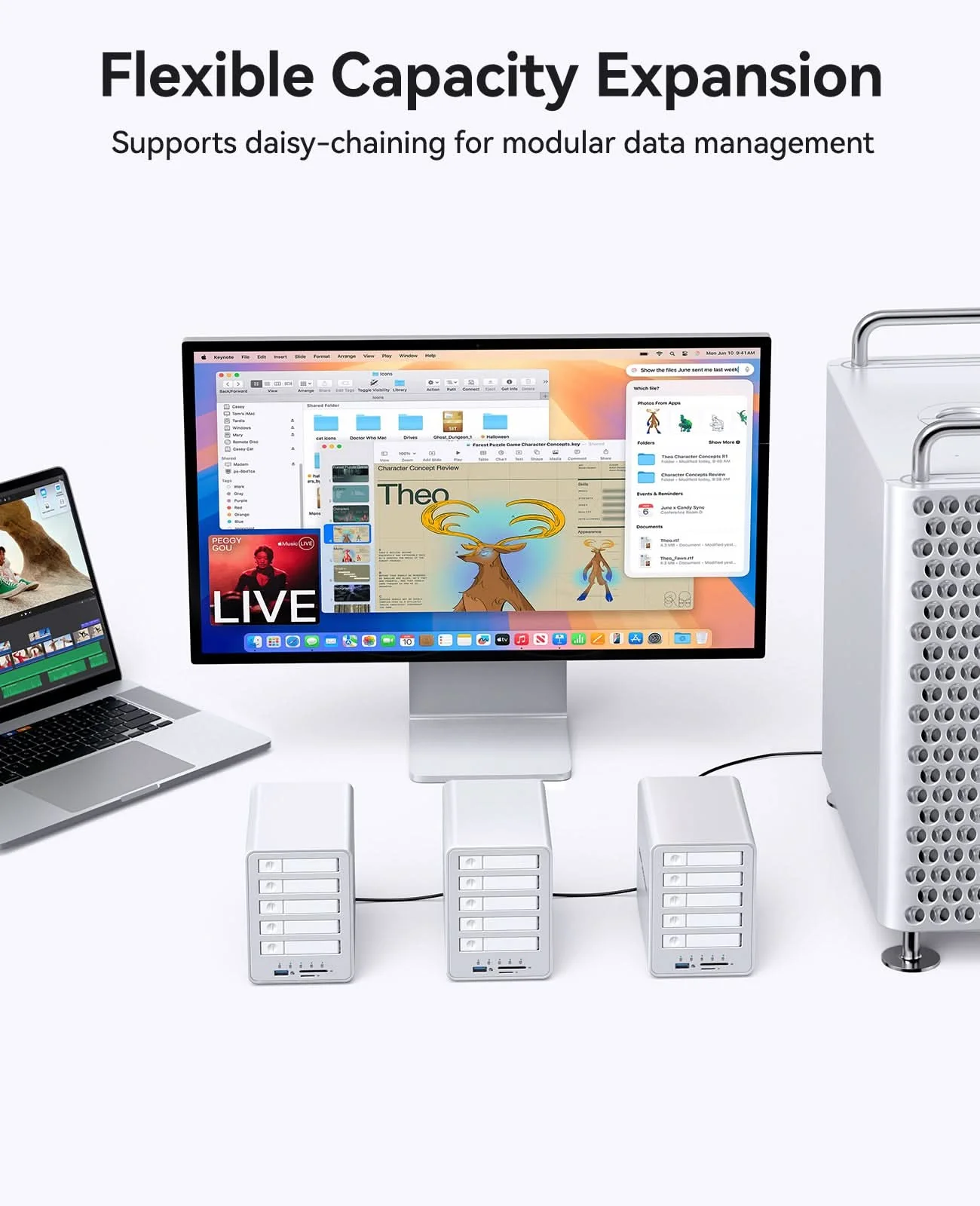

USB storage enclosure supporting PC connection and daisy-chain expansion for additional SSD, HDD and M.2 storage devices.

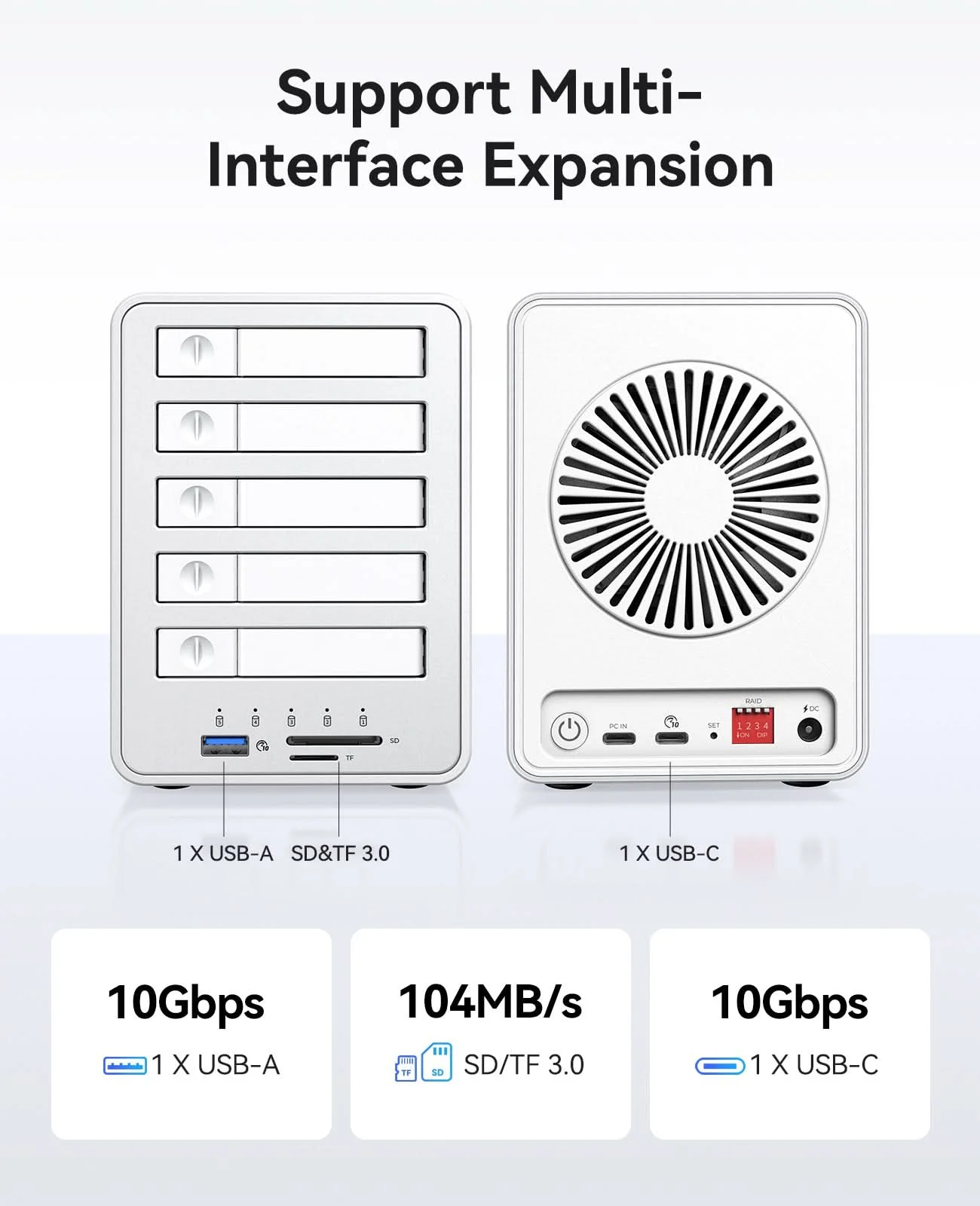

Front panel of 5-bay DAS enclosure showing USB-A 10Gbps port and SD TF card reader for data expansion.
Aluminum 5-bay hard drive enclosure with built-in cooling fan for faster heat dissipation and stable performance.
External hard drive enclosure powered by DC 12V adapter connected to laptop for stable and safe data transfer.
5-bay hard drive enclosure supporting up to 40TB storage capacity with 2.5 inch SSD and HDD drives.
Step-by-step installation guide showing how to mount a 2.5 inch SSD or HDD into the removable drive tray
10Gbps 2-in-1 USB cable with USB-C and USB-A connectors compatible with Windows, Mac, Android devices.
Package contents including 5-bay DAS enclosure, USB cable, power adapter, screws, screwdriver and accessories
Bottom silicone anti-slip pads on hard drive enclosure for stable placement and device protection.
Compact 5-bay hard drive enclosure with smaller footprint compared to traditional storage arrays
5-bay USB 3.2 external hard drive enclosure compatible with Windows, Mac, Linux and Android supporting 2.5 inch SSD and HDD.”
External 5-bay DAS storage enclosure connected to Mac desktop workstation for high-capacity data storage and video editing.





Model
8848RC3
8858RC3
Drive Bays
4 Bays
5 Bays
Supported Drives
2.5" SATA SSD
2.5" SATA SSD
Interface
USB 3.2 Gen2 (10Gbps)
USB 3.2 Gen2 (10Gbps) + Expansion Ports
RAID Support
Yes: RAID 0/1/5/10/JBOD
Yes: RAID 0/1/5/10/JBOD
Max Capacity
8TB per bay / 32TB total
8TB per bay / 40TB total
Daisy Chain Support Not supported Supported
Expansion Ports  None USB-A ×1, USB-C ×2, SD/TF Card Reader
Cooling System Aluminum Body + Built-in Fan Aluminum Body + Built-in Fan
Power Supply 12V / 4A 12V / 5A
Dimensions (cm) 26.8 x 15.2 x 18.5 26.8 x 15.2 x 20.5
Support System Windows/Mac/Linux  Windows / Mac / Linux

Select Size
Select Plug Type
From $56.00

Original: $159.99

-65%
ORICO 88 Series Multi-Bay USB3.2 2.5'' SATA SSD Enclosure with RAID—

$159.99

$56.00

Product Information

Shipping & Returns

Description

ORICO 88 Series Multi-Bay USB3.2 2.5'' NVMe/SATA SSD Enclosure with RAID ORICO
“5-bay USB 3.2 DAS enclosure connected to laptop showing 10Gbps data transfer speed for SSD and HDD storage expansion.”
RAID mode comparison table showing RAID 0, RAID 1, RAID 3 and RAID 5 configuration, disk requirements and storage capacity.”
RAID configuration chart displaying RAID 10, Span JBOD and Normal mode with minimum disks and available storage capacity.”
USB storage enclosure supporting PC connection and daisy-chain expansion for additional SSD, HDD and M.2 storage devices.
Front panel of 5-bay DAS enclosure showing USB-A 10Gbps port and SD TF card reader for data expansion.
Aluminum 5-bay hard drive enclosure with built-in cooling fan for faster heat dissipation and stable performance.
External hard drive enclosure powered by DC 12V adapter connected to laptop for stable and safe data transfer.
5-bay hard drive enclosure supporting up to 40TB storage capacity with 2.5 inch SSD and HDD drives.
Step-by-step installation guide showing how to mount a 2.5 inch SSD or HDD into the removable drive tray
10Gbps 2-in-1 USB cable with USB-C and USB-A connectors compatible with Windows, Mac, Android devices.
Package contents including 5-bay DAS enclosure, USB cable, power adapter, screws, screwdriver and accessories
Bottom silicone anti-slip pads on hard drive enclosure for stable placement and device protection.
Compact 5-bay hard drive enclosure with smaller footprint compared to traditional storage arrays
5-bay USB 3.2 external hard drive enclosure compatible with Windows, Mac, Linux and Android supporting 2.5 inch SSD and HDD.”
External 5-bay DAS storage enclosure connected to Mac desktop workstation for high-capacity data storage and video editing.





Model
8848RC3
8858RC3
Drive Bays
4 Bays
5 Bays
Supported Drives
2.5" SATA SSD
2.5" SATA SSD
Interface
USB 3.2 Gen2 (10Gbps)
USB 3.2 Gen2 (10Gbps) + Expansion Ports
RAID Support
Yes: RAID 0/1/5/10/JBOD
Yes: RAID 0/1/5/10/JBOD
Max Capacity
8TB per bay / 32TB total
8TB per bay / 40TB total
Daisy Chain Support Not supported Supported
Expansion Ports  None USB-A ×1, USB-C ×2, SD/TF Card Reader
Cooling System Aluminum Body + Built-in Fan Aluminum Body + Built-in Fan
Power Supply 12V / 4A 12V / 5A
Dimensions (cm) 26.8 x 15.2 x 18.5 26.8 x 15.2 x 20.5
Support System Windows/Mac/Linux  Windows / Mac / Linux
